一、Product Overview：

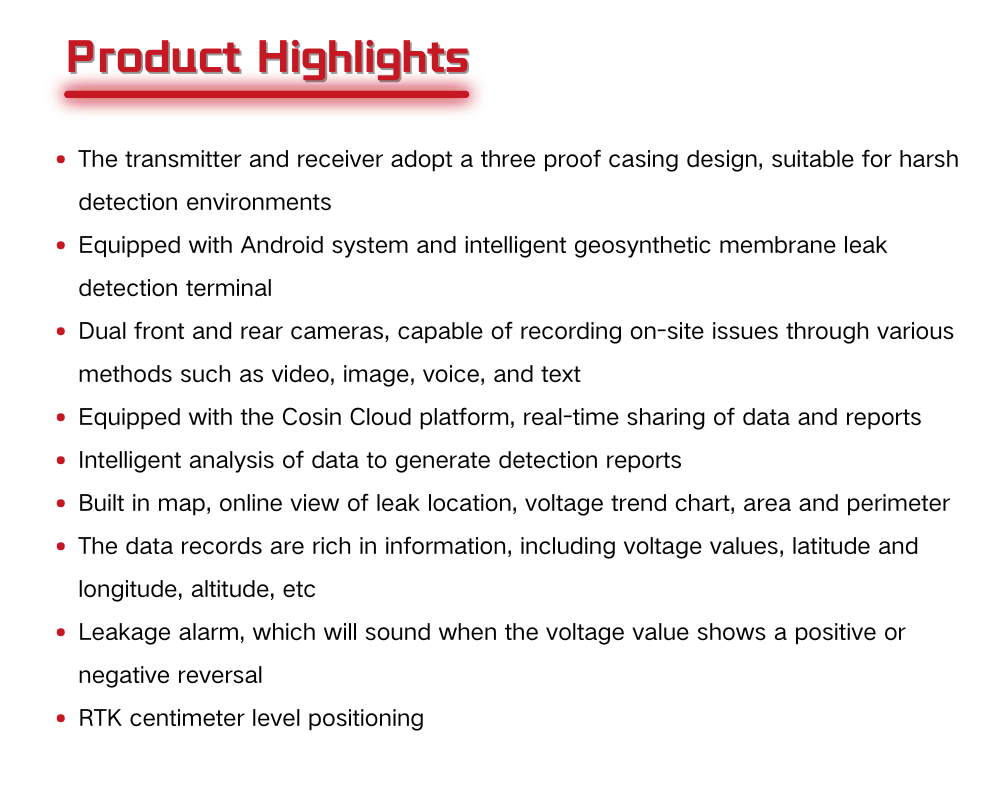

KODIN 6 series - DE double electrode geomembrane leak detector is an intelligent detection terminal built by Kedian Instruments based on Internet technology.
This instrument is equipped with the Android system, which allows for easy customization of various professional testing solutions based on on-site operations and industry standards;
Equipped with wireless communication function, it can easily achieve remote audio and video data interaction;
The casing incorporates industrial design concepts, and the casing protection adopts a three proof design of waterproof, dustproof, and anti drop, which can adapt to various complex industrial sites.
It can detect leakage points below 0.5m and not less than 6mm under the condition of good conductivity of the covering layer.

二、Technical Specifications：

Receiver Technical Parameters

Measure voltage range	±200VDC
Positioning accuracy	RTK?Centimeter level
Voltage trend	Manually record the voltage value and generate a voltage line graph
Leakage alarm	When the voltage value shows a positive or negative reversal, an alarm sound will be emitted
Data recording	Voltage value, latitude and longitude, altitude, remarks, reasons for leakage and pictures
Generate report	Generate a report with just one click based on the recorded content
Supporting protection	Comes with a protective cover for the chassis, suitable for both handheld and pendant carrying
Display screen	6-inch IPS touch high-definition LCD screen
Working hours	10-20 hours
Weight	約520gAbout 520g

Technical parameters of transmitter

Output power	100W
Output voltage	0~700V
Output current	0~1000mA
Power supply	220VAC~240VAC
Safety protection	Open the output connector cover and turn off the power; The red "STOP" button cuts off power; High and low power gear return to neutral power outage; Two green "START" start buttons Simultaneously press the power button to avoid accidents
Overload reminder	When the current is greater than 1000mA and the temperature is greater than 60 ℃, an alarm prompt appears on the screen, and the output voltage needs to be manually reduced
Weight	About 16kg

三、Site of use：

戳我試試

四、Standard product packing list：

1. 1 KODIN 6A-DE receiver
2. 1 T × 100 transmitter
3. 1 electrode holder
4. Two electrodes
5. 1 power adapter (10V 2A)
6. 1 AC power cord
7. Two electrode jumper wires
8. Electrode connection extension cable 1 reel
9. One Q9 to 4mm banana head connecting wire
10. 1 Q9 to BNC socket
11. Two 4mm double ended banana extension cords (one red and one black)
12. 1 RTK high-precision antenna
13. 1 USB data cable
14. 1 SIM card ejector pin
15. 2 fuses (250V 5A)
16. Two reference electrodes
